General information
Material information
Connection data-IEC
Connection data-UL
Environment & Safety
UL Recognized
CUL Recognized
VDE Approval
-
General information
- Short description
- Single level Feed-Through Terminal Block, Push-in Design
- Long description
- Single level Feed-Through Terminal Block, Push-in Design, Width : 10mm, 600V, 60A
- Category
- Single level Feed Through Terminal Block
- Color
- Beige (default)
- Connection method
- Push-in Design
- Type of locking
- Rail Mounting
- Length (mm)
- 69
- Width (mm)
- 10
- Height (mm)
- 49.3
- Number of positions
- ≧1P
- Level
- Single level
- Connection points
- 2
-
Material information
- Insulation material
- PA
- Insulation material group
- I
- Flame retardant rating , compliant with UL94
- V0
- Insulation resistance
- ≧500MΩ at DC 500V
-
Connection data-IEC
- Rated voltage (V)
- 1000
- Rated current (A)
- 57
- Rated voltage (III/3)(V)
- 1000
- Rated impulse voltage (III/3)(KV)
- 8
- Conductor cross section solid. min (mm²)
- 0.5
- Conductor cross section solid.max (mm²)
- 16
- Conductor cross section stranded. min (mm²)
- 0.5
- Conductor cross section stranded. max (mm²)
- 10
- Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
- 0.5
- Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
- 10
- Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
- 0.5
- Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
- 10
- 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
- 1.5
- 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
- 4
- Slotted screwdriver size (Blade thickness x Width)(mm)
- 1.0x5.5
- Stripping Length (mm)
- 18
- Mounting rail
- TS-35
- End cover plate required
- YES
- Grounding connections
- NO
-
Connection data-UL
- Rated voltage (UL/CUL Group B)(V)
- 600
- Rated current (UL/CUL Group B)(A)
- 60
- Rated voltage (UL/CUL Group C)(V)
- 600
- Rated current (UL/CUL Group C)(A)
- 60
- Min. solid wire connection (AWG) acc. to UL/CUL
- 20
- Max. solid wire connection AWG acc. to UL/CUL
- 6
- Min. stranded wire connection AWG acc. to UL/CUL
- 20
- Max. stranded wire connection AWG acc. to UL/CUL
- 6
-
Environment & Safety
- Back of the hand protection (YES or NO)
- YES
- Finger protection (YES or NO)
- YES
- Operating temperature. max (°C)
- 120
- Operating temperature. min (°C)
- -40
-
UL Recognized
- Wire Range (Group B)(AWG)
- 20~6
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- 60
- Wire Range (Group C)(AWG)
- 20~6
- Rated voltage (Group C)(V)
- 600
- Rated current (Group C)(A)
- 60
-
CUL Recognized
- Wire Range (Group B)(AWG)
- 20~6
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- 60
- Wire Range (Group C)(AWG)
- 20~6
- Rated voltage (Group C)(V)
- 600
- Rated current (Group C)(A)
- 60
-
VDE Approval
- Wire Range (mm²)
- 0.5~10
- Rated voltage (V)
- 1000
- Rated current (A)
- 57
-
DP10C
End Cover For DP10
Beige color.
Using UL94-V0 class of insulation material. - Add
-
TM45W
Marking Label For
BEST APPLICATION：
DP10, DP10-PE, DP10-TN, DP10-TN-PE,DKD10-P001, DPHD10-P001, AK10, AK10-PE, AK10-TN, AK10-TN-PE
AVAILABLE APPLICATION：
DP16, DP16-PE, AK16, AK16-PE, AK16-TN, AK35, DPD10-P001, DPD16-P001, DKD35-P001, DKD35-P002, DK10-TF, DK10-TFA
White color.
Using UL94-V0 class of insulation material. - Add
-
TS-35C
DIN rail end cap For TS-35 rail.
Black color.
Using UL94-V2 class of insulation material. - Add
-
TS-35
DIN-Rail For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
Material is iron.
Length of 1000mm / 2000mm. - Add
-
TM50W
Marking Label For
BEST APPLICATION：
DP10, DP10-PE, DP10-TN, DP10-TN-PE, DKD10-P001, DPHD10-P001,
AK10, AK10-PE, AK10-TN, AK10-TN-PE, DK10N, DK10N-PE, DK10N-TN, SS6N
AVAILABLE APPLICATION：
DP16, DP16-PE, AK16, AK16-PE, AK16-TN, AK35, DK10-PE, DK16N, DK16N-PE, DK16H, DK16-PE,
DK35N, DK35H, DK35H-PE, DK50, DK50-PE, DK95, DK95-PE, DK150, DK240, DKM Series
White color.
Using UL94-V0 class of insulation material. - Add
-

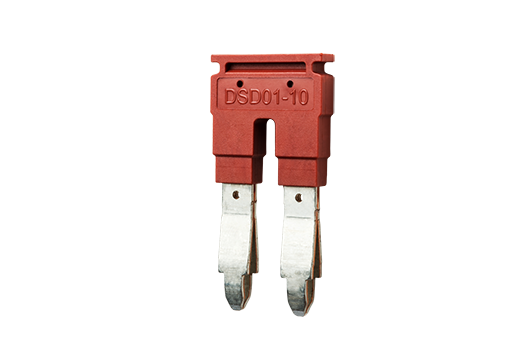

DSD01-10XXN
Plug-in bridge For DP10, DP10-PE, DP10-TN-PE, AK10, AK10-TN, DKD35-P003.
Red color.
Using UL94-V0 class of insulation material. - Add
-
SS2N
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - Add
-
SS4N
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - Add
-
SS5N
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - Add
-
SS6N
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - Add
-
SS7N
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - Add
-
SS11
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - Add
-
SS13
End Bracket For TS-35, TS-35/15 rails.
Beige color.
Using UL94-V0 class of insulation material. - Add
-
TM-R100
Continuous Flat Marking Labels - Add
-
TM-R200
Continuous Flat Marking Labels - Add
-

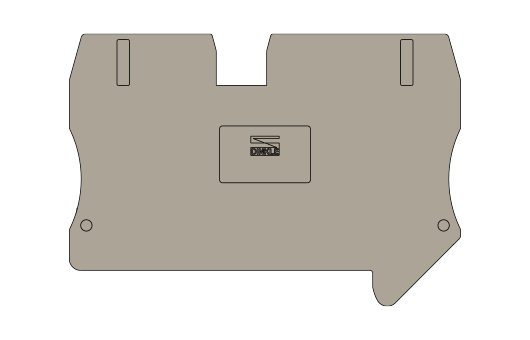

DP10CA
End Cover For DP10N
Beige color.
Using UL94-V0 class of insulation material. - Add
The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
