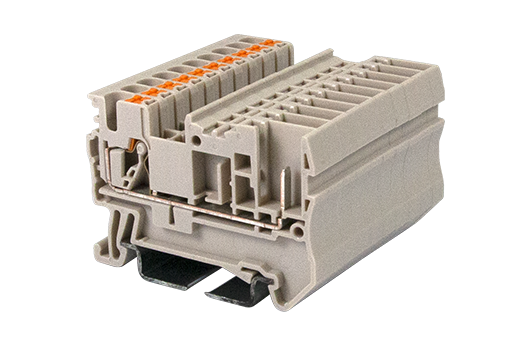

DPES2.5

DIN Rail Terminal BlocksPush-in Design

600V, 20A, Beige (default)

AccessoriesPDF Download Inquiry Add

CAD data

Specification
Approvals
Drawings
Accessories

General information Material information Connection data-IEC Connection data-UL Environment & Safety UL Recognized CUL Recognized

General information
- Short description
- Plug-in Connection Terminal Block, Push-in Design
- Long description
- Plug-in Connection Terminal Block, Push-in Design, Width : 5.08mm, 600V, 20A
- Category
- Plug-in Connection Terminal Block
- Pitch (mm)
- 5.08
- Color
- Beige (default)
- Connection method
- Push-in Design
- Type of locking
- Rail Mounting
- Length (mm)
- 51
- Width (mm)
- 5.08
- Height (mm)
- 35
- Number of positions
- ≧1P
- Level
- Single level
- Connection points
- 1
Material information
- Insulation material
- PA
- Insulation material group
- I
- Flame retardant rating , compliant with UL94
- V0
- Insulation resistance
- ≧500MΩ at DC 500V
Connection data-IEC
- Rated voltage (V)
- 800
- Rated current (A)
- 24
- Rated voltage (III/3)(V)
- 800
- Rated impulse voltage (III/3)(KV)
- 8
- Conductor cross section solid. min (mm²)
- 0.14
- Conductor cross section solid.max (mm²)
- 4
- Conductor cross section stranded. min (mm²)
- 0.14
- Conductor cross section stranded. max (mm²)
- 2.5
- Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
- 0.25
- Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
- 2.5
- Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
- 0.25
- Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
- 2.5
- 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
- 0.5
- 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
- 0.5
- Slotted screwdriver size (Blade thickness x Width)(mm)
- 0.6x3.5
- Stripping Length (mm)
- 9~10
- Mounting rail
- TS-35、TS-35/15
- End cover plate required
- YES
- Grounding connections
- NO
Connection data-UL
- Rated voltage (UL/CUL Group B)(V)
- 600
- Rated current (UL/CUL Group B)(A)
- 20
- Rated voltage (UL/CUL Group C)(V)
- 600
- Rated current (UL/CUL Group C)(A)
- 20
- Min. solid wire connection (AWG) acc. to UL/CUL
- 26
- Max. solid wire connection AWG acc. to UL/CUL
- 12
- Min. stranded wire connection AWG acc. to UL/CUL
- 26
- Max. stranded wire connection AWG acc. to UL/CUL
- 12
Environment & Safety
- Back of the hand protection (YES or NO)
- YES
- Finger protection (YES or NO)
- YES
- Operating temperature. max (°C)
- 120
- Operating temperature. min (°C)
- -40
UL Recognized
- Wire Range (Group B)(AWG)
- 26~12
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- 20
- Wire Range (Group C)(AWG)
- 26~12
- Rated voltage (Group C)(V)
- 600
- Rated current (Group C)(A)
- 20
CUL Recognized
- Wire Range (Group B)(AWG)
- 26~12
- Rated voltage (Group B)(V)
- 600
- Rated current (Group B)(A)
- 20
- Wire Range (Group C)(AWG)
- 26~12
- Rated voltage (Group C)(V)
- 600
- Rated current (Group C)(A)
- 20
