• Short description
• Plug-in Connection Terminal Block, Push-in Design

• Long description

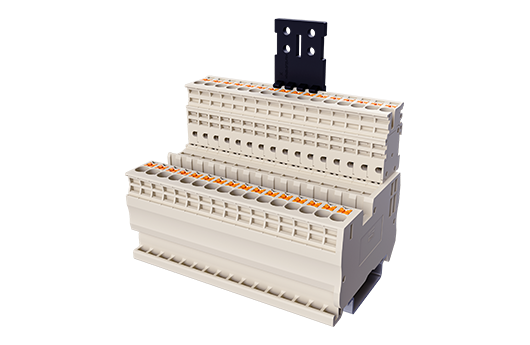

• Plug-in Connection Terminal Block, Push-in Design, Width :5.08mm, 600V, 20A

• Category
• Plug-in Connection Terminal Block

• Pitch (mm)
• 5.08

• Color
• Beige (default)

• Connection method
• Push-in Design

• Type of locking
• Rail Mounting

• Length (mm)
• 83.3

• Width (mm)
• 60

• Height (mm)
• 84

• Number of positions
• 16

• Level
• Single level

• Connection points
• 32

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≧500MΩ at DC 500V

• Rated voltage (V)
• 800

• Rated current (A)
• 24

• Rated voltage (III/3)(V)
• 800

• Rated impulse voltage (III/3)(KV)
• 8

• Conductor cross section solid. min (mm²)
• 0.14

• Conductor cross section solid.max (mm²)
• 4

• Conductor cross section stranded. min (mm²)
• 0.14

• Conductor cross section stranded. max (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 2.5

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 0.5

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.6x3.5

• Stripping Length (mm)
• 9~10

• Mounting rail
• TS-35

• End cover plate required
• YES

• Grounding connections
• NO

• Rated voltage (UL/CUL Group B)(V)
• 600

• Rated current (UL/CUL Group B)(A)
• 20

• Rated voltage (UL/CUL Group C)(V)
• 600

• Rated current (UL/CUL Group C)(A)
• 20

• Min. solid wire connection (AWG) acc. to UL/CUL
• 26

• Max. solid wire connection AWG acc. to UL/CUL
• 12

• Min. stranded wire connection AWG acc. to UL/CUL
• 26

• Max. stranded wire connection AWG acc. to UL/CUL
• 12

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 26~12

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 20

• Wire Range (Group C)(AWG)
• 26~12

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 20

• Wire Range (Group B)(AWG)
• 26~12

• Rated voltage (Group B)(V)
• 600

• Rated current (Group B)(A)
• 20

• Wire Range (Group C)(AWG)
• 26~12

• Rated voltage (Group C)(V)
• 600

• Rated current (Group C)(A)
• 20
