• Short description

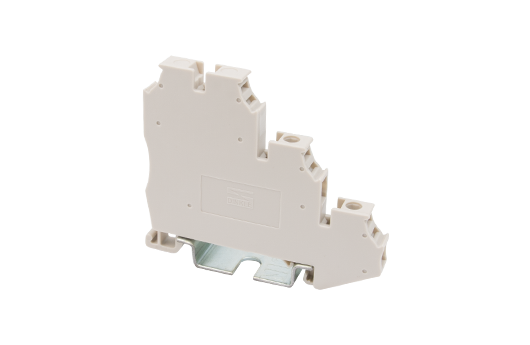

• Sensor Terminal Block, Screw Connection

• Long description
• Sensor Terminal Block, Screw Connection, Width:5.10mm, 300V, 15A

• Category
• Sensor Terminal Block

• Color
• Beige (default)

• Connection method
• Screw Connection

• Length (mm)
• 60.4

• Width (mm)
• 5.1

• Height (mm)
• 50.7

• Number of positions
• ≥1P

• Level
• Double level

• Connection points
• 2

• Insulation material
• PA

• Insulation material group
• I

• Flame retardant rating , compliant with UL94
• V0

• Insulation resistance
• ≥500MΩ at DC 500V

• Rated voltage (V)
• 250

• Rated current (A)
• 17.5

• Rated voltage (III/3)(V)
• 250

• Rated impulse voltage (III/3)(KV)
• 4

• Conductor cross section solid. min (mm²)
• 0.2

• Conductor cross section solid.max (mm²)
• 2.5

• Conductor cross section stranded. min (mm²)
• 0.2

• Conductor cross section stranded. max (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
• 2.5

• Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
• 0.25

• Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
• 2.5

• 2 conductors with same cross section, solid, min (mm²)
• 0.2

• 2 conductors with same cross section, solid, max (mm²)
• 1

• 2 conductors with same cross section, stranded, min (mm²)
• 0.2

• 2 conductors with same cross section, stranded, max (mm²)
• 0.75

• 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²)
• 1

• 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
• 0.5

• 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
• 1

• Screw thread
• M2.5

• Slotted screwdriver size (Blade thickness x Width)(mm)
• 0.6x3.5

• Philips screwdriver size
• PH0

• Recommend tightening torque. min (N.m)
• 0.4

• Recommend tightening torque. max (N.m)
• 0.45

• Stripping Length (mm)
• 8~9

• Mounting rail
• TS-35

• End cover plate required
• YES

• Grounding connections
• NO

• Rated voltage (UL/CUL Group B)(V)
• 300

• Rated current (UL/CUL Group B)(A)
• 15

• Rated voltage (UL/CUL Group C)(V)
• 300

• Rated current (UL/CUL Group C)(A)
• 15

• Min. solid wire connection (AWG) acc. to UL/CUL
• 24

• Max. solid wire connection AWG acc. to UL/CUL
• 14

• Min. stranded wire connection AWG acc. to UL/CUL
• 24

• Max. stranded wire connection AWG acc. to UL/CUL
• 14

• Back of the hand protection (YES or NO)
• YES

• Finger protection (YES or NO)
• YES

• Operating temperature. max (°C)
• 120

• Operating temperature. min (°C)
• -40

• Wire Range (Group B)(AWG)
• 24~14

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 15

• Wire Range (Group C)(AWG)
• 24~14

• Rated voltage (Group C)(V)
• 300

• Rated current (Group C)(A)
• 15

• Wire Range (Group B)(AWG)
• 24~14

• Rated voltage (Group B)(V)
• 300

• Rated current (Group B)(A)
• 15

• Wire Range (Group C)(AWG)
• 24~14

• Rated voltage (Group C)(V)
• 300

• Rated current (Group C)(A)
• 15
