DP4N

DIN Rail Terminal BlocksPush-in Design

600V, 30A, Beige (default)

AccessoriesPDF Download Inquiry Add

CAD data

  • General information
    • Short description
    • Single level Feed-Through Terminal Block, Push-in Design
    • Long description
    • Single level Feed-Through Terminal Block, Push-in Design, Width : 6.1mm, 600V, 30A
    • Category
    • Single level Feed Through Terminal Block
    • Color
    • Beige (default)
    • Connection method
    • Push-in Design
    • Type of locking
    • Rail Mounting
    • Length (mm)
    • 57
    • Width (mm)
    • 6.1
    • Height (mm)
    • 35
    • Number of positions
    • ≧1P
    • Level
    • Single level
    • Connection points
    • 2
  • Material information
    • Insulation material
    • PA
    • Insulation material group
    • I
    • Flame retardant rating , compliant with UL94
    • V0
    • Insulation resistance
    • ≧500MΩ at DC 500V
  • Connection data-IEC
    • Rated voltage (V)
    • 800
    • Rated current (A)
    • 32
    • Rated voltage (III/3)(V)
    • 800
    • Rated impulse voltage (III/3)(KV)
    • 8
    • Conductor cross section solid. min (mm²)
    • 0.2
    • Conductor cross section solid.max (mm²)
    • 6
    • Conductor cross section stranded. min (mm²)
    • 0.2
    • Conductor cross section stranded. max (mm²)
    • 4
    • Conductor cross section flexible, with min ferrule without plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule without plastic sleeve (mm²)
    • 4
    • Conductor cross section flexible, with min ferrule with plastic sleeve (mm²)
    • 0.25
    • Conductor cross section flexible, with max ferrule with plastic sleeve (mm²)
    • 4
    • 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²)
    • 0.5
    • 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²)
    • 1
    • Slotted screwdriver size (Blade thickness x Width)(mm)
    • 0.8x4.0
    • Stripping Length (mm)
    • 12
    • Mounting rail
    • TS-35
    • End cover plate required
    • YES
    • Grounding connections
    • NO
  • Connection data-UL
    • Rated voltage (UL/CUL Group B)(V)
    • 600
    • Rated current (UL/CUL Group B)(A)
    • 30
    • Rated voltage (UL/CUL Group C)(V)
    • 600
    • Rated current (UL/CUL Group C)(A)
    • 30
    • Min. solid wire connection (AWG) acc. to UL/CUL
    • 24
    • Max. solid wire connection AWG acc. to UL/CUL
    • 10
    • Min. stranded wire connection AWG acc. to UL/CUL
    • 24
    • Max. stranded wire connection AWG acc. to UL/CUL
    • 10
  • Environment & Safety
    • Back of the hand protection (YES or NO)
    • YES
    • Finger protection (YES or NO)
    • YES
    • Operating temperature. max (°C)
    • 120
    • Operating temperature. min (°C)
    • -40
  • UL Recognized
    • Wire Range (Group B)(AWG)
    • 24~10
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 30
    • Wire Range (Group C)(AWG)
    • 24~10
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 30
  • CUL Recognized
    • Wire Range (Group B)(AWG)
    • 24~10
    • Rated voltage (Group B)(V)
    • 600
    • Rated current (Group B)(A)
    • 30
    • Wire Range (Group C)(AWG)
    • 24~10
    • Rated voltage (Group C)(V)
    • 600
    • Rated current (Group C)(A)
    • 30
  • AKSPS-001

    Partition Plate

    For DP1.5N, DP2.5N, DP4N, DP1.5N-PE, DP2.5N-PE, DP4N-PE, DPH1.5, DPH1.5-PE, DPH2.5, DPH2.5-PE, AK1.5, AK2.5, AK4
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • DP4C

    End Cover

    For DP4N
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • MKG-003

    Label

    For SS2N, SS6N, SS7N, DP Series, AK Series.
    Using UL94-V0 class of insulation material.
  • Add
  • MKG-004

    Label

    For SS2N, SS6N, SS7N, DP Series, AK Series.
    Using UL94-V0 class of insulation material.
  • Add
  • TM43W

    Marking Label

    For
    BEST APPLICATION:
    DP4N, DP4N-PE, DP4N-TN, DP4N-TN-PE, DP4N-TR, DP4N-TR-PE, DP4N-3L-SPE, AK4, AK4-PE, AK4-TN, AK4-TN-PE, AK4-TR, AK4-TR-PE, DPP4N Series, DP4N-T Series, DP4N-TF Series, AKK4, AK4-TF, AK4-T Series, DK4S, PM4N-XXP, SS2N

    White color.
    Using UL94-V0 class of insulation material.
  • Add

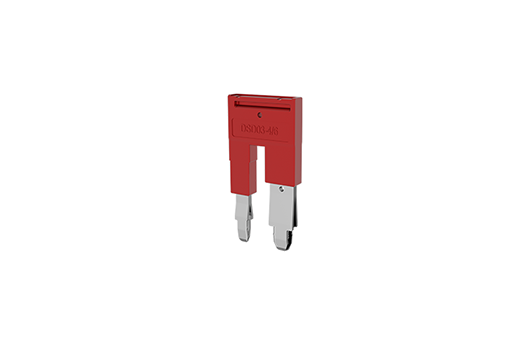

  • DSD03-2.5/4

    Plug-in bridge

    For DP2.5N Series, DP4N Series, DPD10-P001, DPD16-P001,
    DKD10-P001, DPHD10-P001
    Red color.
    Using UL94-V0 class of insulation material.
  • Add

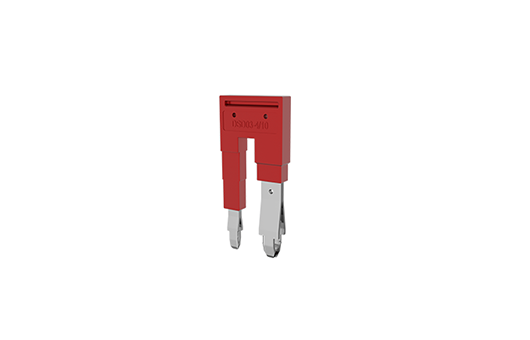

  • DSD03-1.5/4

    Plug-in bridge

    For DP1.5 / DP4 / DP1.5-TN / DP4-TN / DP1.5-TR / DP4-TR
    Red color.
    Using UL94-V0 class of insulation material.
  • Add
  • TS-35C

    DIN rail end cap

    For TS-35 rail.
    Black color.
    Using UL94-V2 class of insulation material.
  • Add
  • TS-35

    DIN-Rail

    For DP / DK..N / DK.. / AK / DKB / DKU.. /DKM.. series.
    Material is iron.
    Length of 1000mm / 2000mm.
  • Add
  • TM48W

    Marking Label

    For
    BEST APPLICATION:
    DP4N, DP4N-PE, DP4N-TN, DP4N-TN-PE, DP4N-TR, DP4N-TR-PE, DP4N-3L-SPE, AK4, AK4-PE, AK4-TN, AK4-TN-PE, AK4-TR, AK4-TR-PE, DK4N Series, DKK4N Series.

    AVAILABLE APPLICATION:
    DK4-PE

    White color.
    Using UL94-V0 class of insulation material.
  • Add

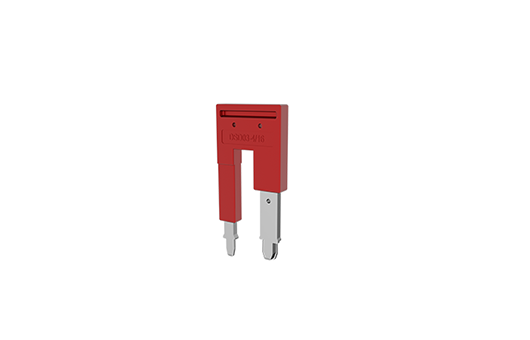

  • DSD01-4XXN

    Plug-in bridge

    For DP4N, DP4N-TN, DP4N-TR, DP4N-PE, DP4N-TN-PE, DP4N-TR-PE, DPP4N Series, DP4N-TP, DP4N-TG, DP4N-CP, DP4N-TF(5X20), DP4N-TFLXX(5X20), DP4N-TFU, DP4N-TFUL, DP4N-TFU(5X20), DP4N-TFUL(5X20), DP4N-T, DP4N-M(5X20),
    DP4N-MLXX-5X20, AK4, AK4-TN, AK4-TR, AKK4, AK4-TP, AK4-TG, AK4-CP,
    AK4-TF(5X20), AK4-TFLXX(5X20), AK4-T, AK4-M(5X20), AK4-MLXX-5X20
    Red color.
    Using UL94-V0 class of insulation material.
  • Add
  • SS2N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • SS4N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • SS5N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • SS6N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • SS7N

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • SS11

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • SS13

    End Bracket

    For TS-35, TS-35/15 rails.
    Beige color.
    Using UL94-V0 class of insulation material.
  • Add
  • 0208-E002

    Spacer

    For
    DP4N, DP4N-TN, DP4N-TR, DP4N-PE, DP4N-TN-PE, DP4N-TR-PE, DPP4N, DPP4N-PV, DPP4N-L2PE, DP4-3L-SPE, DPP4N-PE, DP4-TP, DP4-TG, DP4-CP, DP4-TF(5X20), DP4-TFLXX(5X20), DP4N-TFU, DP4N-TFULXX, DP4N-TFU(5X20), DP4N-TFULXX(5X20)

    Red color.
    Using UL94-V0 class of insulation material.
  • Add
  • 0208-T002

    Test Plug

    For
    DP4N, DP4N-TN, DP4N-TR, DP4N-PE, DP4N-TN-PE, DP4N-TR-PE, DPP4N, DPP4N-PV, DPP4N-L2PE, DP4-3L-SPE, DPP4N-PE, DP4-TP, DP4-TG, DP4-CP, DP4-TF(5X20), DP4-TFLXX(5X20), DP4N-TFU, DP4N-TFULXX, DP4N-TFU(5X20), DP4N-TFULXX(5X20)

    Red color.
    Using UL94-V0 class of insulation material.
  • Add
  • TM-R100

    Continuous Flat Marking Labels

  • Add
  • TM-R200

    Continuous Flat Marking Labels

  • Add

The web catalog is for reference only. Dinkle remains the right of product modification and engineering change of the design. The final product is made according to engineering drawing.
